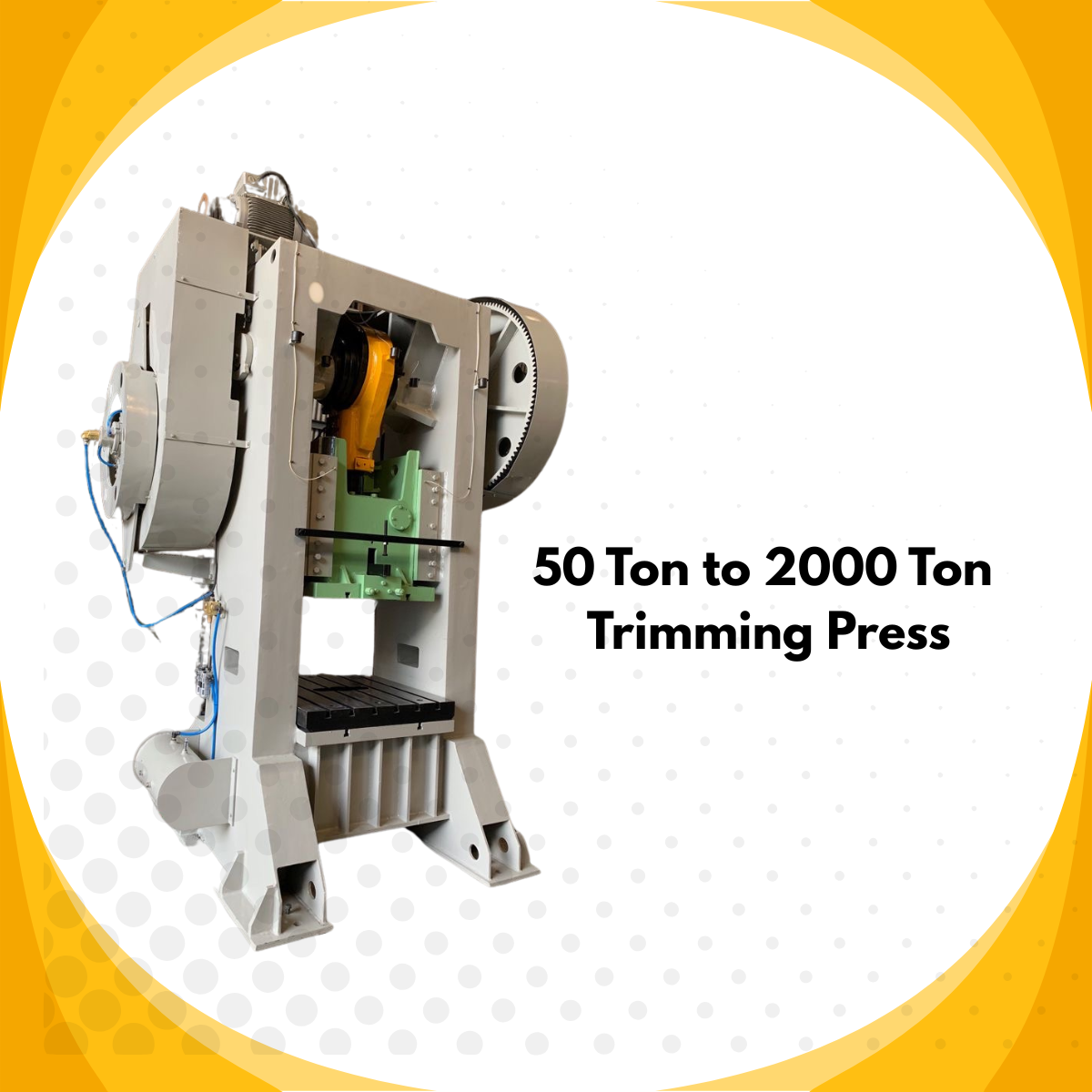

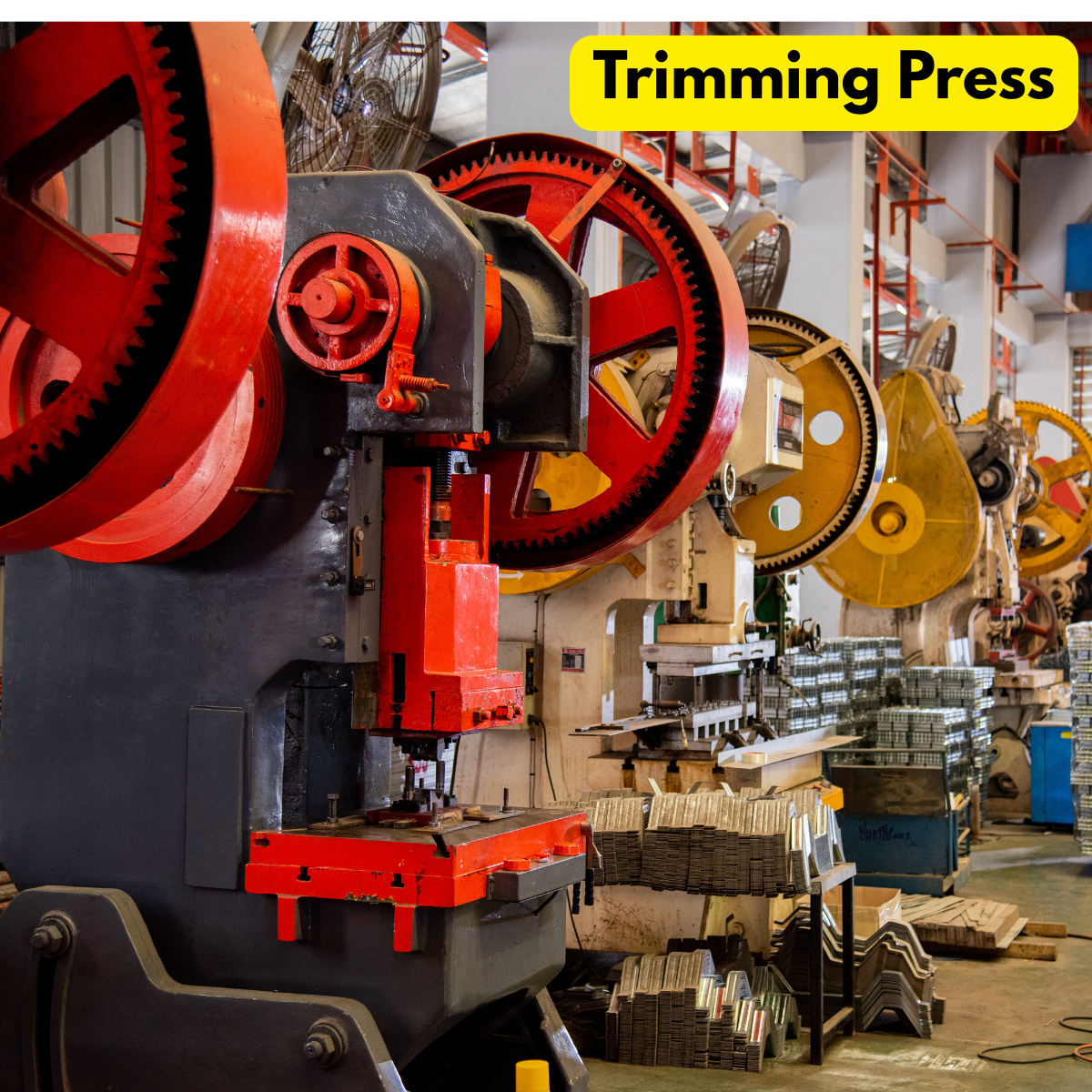

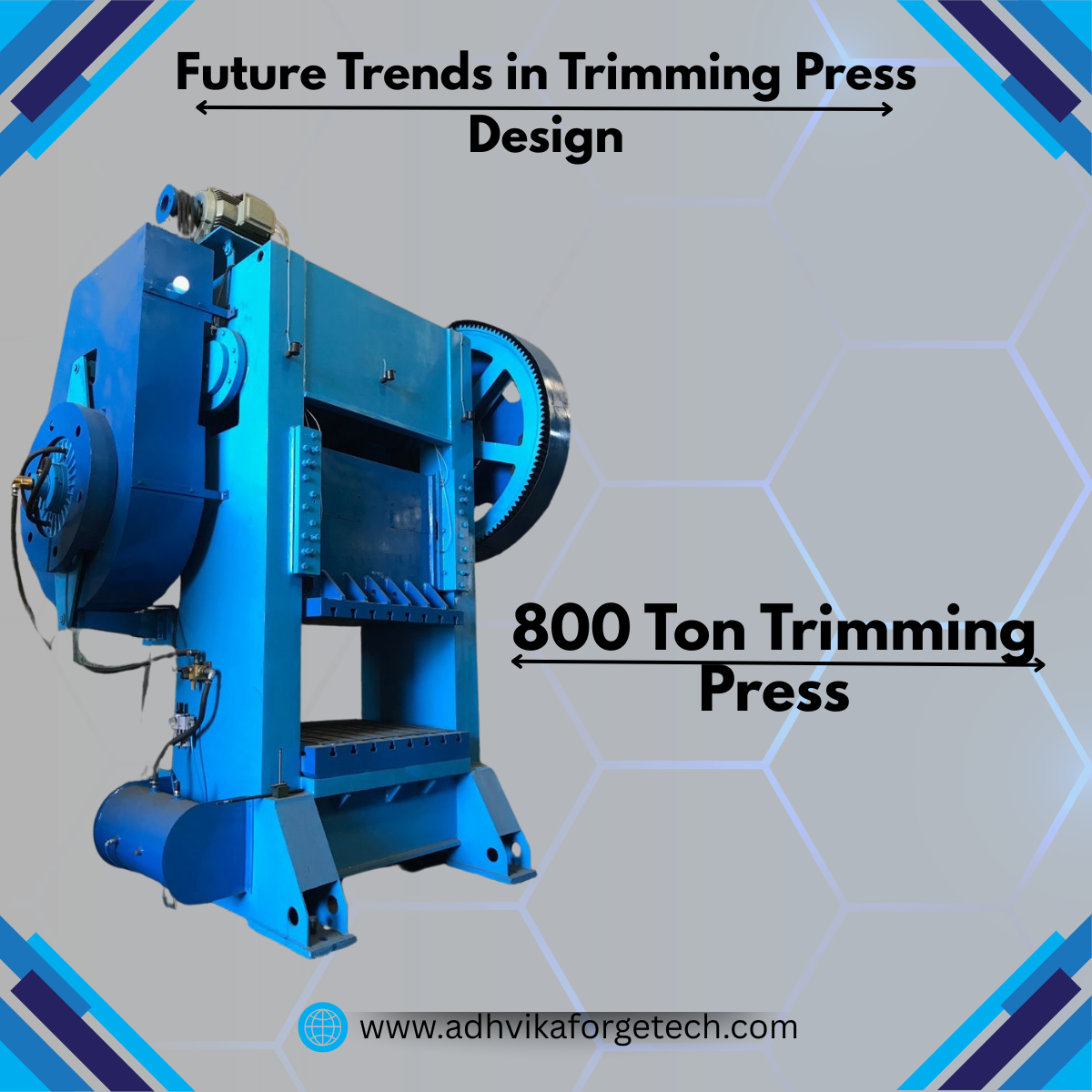

Trimming Press
A Trimming Press is an essential machine used in manufacturing processes to remove excess material—such as flash, burrs, or remnants from castings or formed parts—ensuring a clean, precise finish. These presses are commonly employed in industries like automotive, aerospace, medical devices, and general manufacturing to work with materials like metal, plastic, or wood.
Specifications :
| Specifications | 30 Tons | 50 Tons | 80 Tons | 100 Tons | 150 Tons | 200 Tons | 250 Tons | 300 Tons | 400 Tons | 500 Tons |
| Bed Size LxFB (mm) | 440×440 | 445×511 | 475×536 | 580×655 | 642×715 | 680×800 | 900×900 | 925×950 | 950×1000 | 1000×1100 |
| No. Of Strokes Per Min (SPM) | 50 | 45 | 40 | 40 | 35 | 35 | 30 | 30 | 28 | 28 |
| Stroke Length Adjustable (mm) | 50 | 60 | 65 | 80 | 110 | 130 | 150 | 180 | 200 | 250 |
| Daylight from Bottom Bed (mm) | 291 | 295 | 317 | 435 | 483 | 520 | 550 | 600 | 650 | 700 |
| Shut Height from Bottom Bed (mm) | 215 | 208 | 229 | 315 | 336 | 356 | 400 | 450 | 500 | 550 |
| Slide Adjustment (mm) | 25 | 25 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 65 |
| Bolster Thickness (mm) | 75 | 80 | 85 | 90 | 95 | 102 | 102 | 120 | 120 | 120 |
| Bed Opening (mm) | – | – | – | 150 | 150 | 180 | 200 | 200 | 200 | 200 |
| Gear Dia (mm) | 610 | 678 | 974 | 873 | 1041 | 1168 | 1220 | 1350 | 1400 | 1475 |
| Fly Wheel Dia (mm) | 760 | 810 | 950 | 1050 | 1180 | 1250 | 1300 | 1400 | 1500 | 1600 |
| Shank Hole Dia (mm) | 31 | 31 | 31 | 38 | 38 | 50 | 63 | 75 | 75 | 75 |
| Floor to Top of Bed (mm) | 725 | 740 | 740 | 750 | 755 | 782 | 813 | 850 | 850 | 850 |
| Motor Power Required (HP) | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
| Required Air Pressure (kg/cm²) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Capacity (Tons) | 30 | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Stroke Per Min (SPM) | 50 | 45 | 40 | 40 | 35 | 30 | 30 | 30 | 28 | 28 |
| Req. Air Pressure (kg/cm²) | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
Key Applications of Trimming Press Machines
-
Metal Deburring: Used for removing flashes from aluminum, magnesium, or zinc castings in die-casting processes.
-
Automotive and Aerospace: Ideal for cutting and shaping materials to make parts like automotive components, aerospace fittings, and medical devices.
-
Crafting: In smaller-scale applications, such as cutting leather, fabric, and button work.
-
Construction Materials: Trimming materials like insulation or composite sheets for various building applications.
Key Features of Trimming Press Machines
-
Customizable Designs: Available in different structural forms like four-column or mono frame designs, tailored to specific production needs.
-
Precision: High precision with positioning accuracy as fine as ±0.01mm.
-
Durability: Constructed with high-quality materials, including low-carbon steel and chrome-plated columns for enhanced durability.
-
Safety: Equipped with essential safety features, including emergency stops, guards, and compliance with safety standards like CE and OSHA.
-
Automation Integration: Many models can be integrated with robots or automated systems to improve overall efficiency and production rates.
