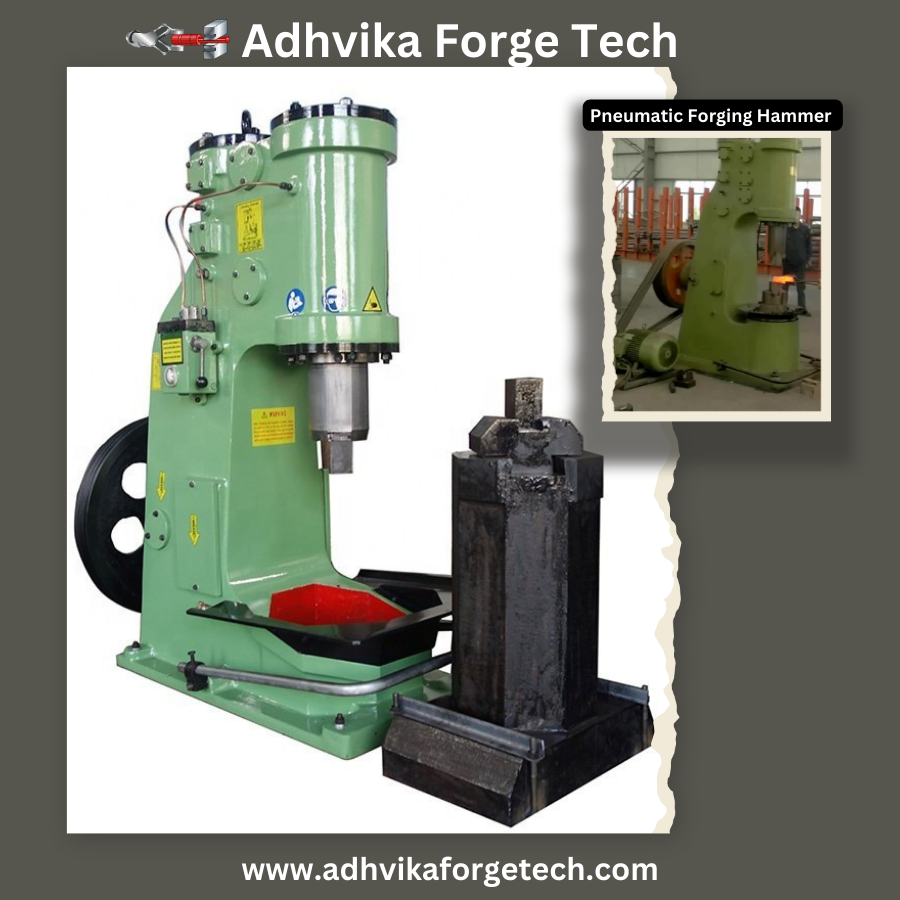

Pneumatic Forging Hammer
Introduction :
Pneumatic Forging Hammer : Range (150 kg to 2000 kg)
Adhvika Forge Tech Pneumatic Forging Hammers are widely used in industrial open die forging. The AD series is perfect for general forging tasks like:
- Drawing-out
- Upsetting
- Punching
- Chiseling
- Forging welding
- Bending & Twisting
It’s also suitable for open-type close die forging with bolster dies.
Key Features:
✅ Self-Contained Design: No need for external air supply or high-pressure hoses.
✅ Versatile Forging: Easily switch between heavy and light stock without adjustments.
✅ Power & Precision: Strong forging power with precise control—thanks to the combination of ram weight, air force, and velocity.

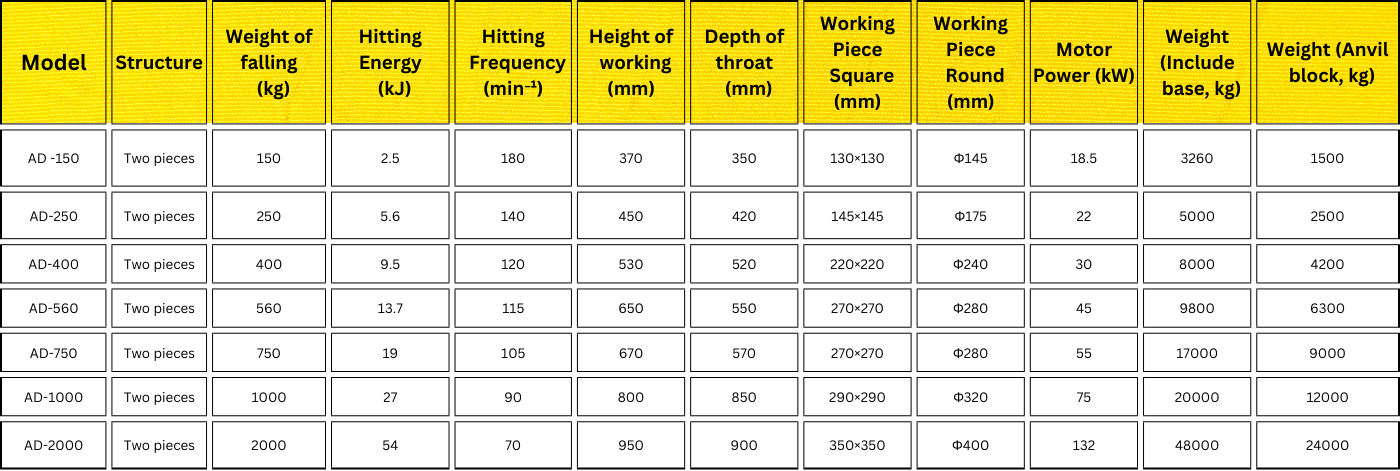

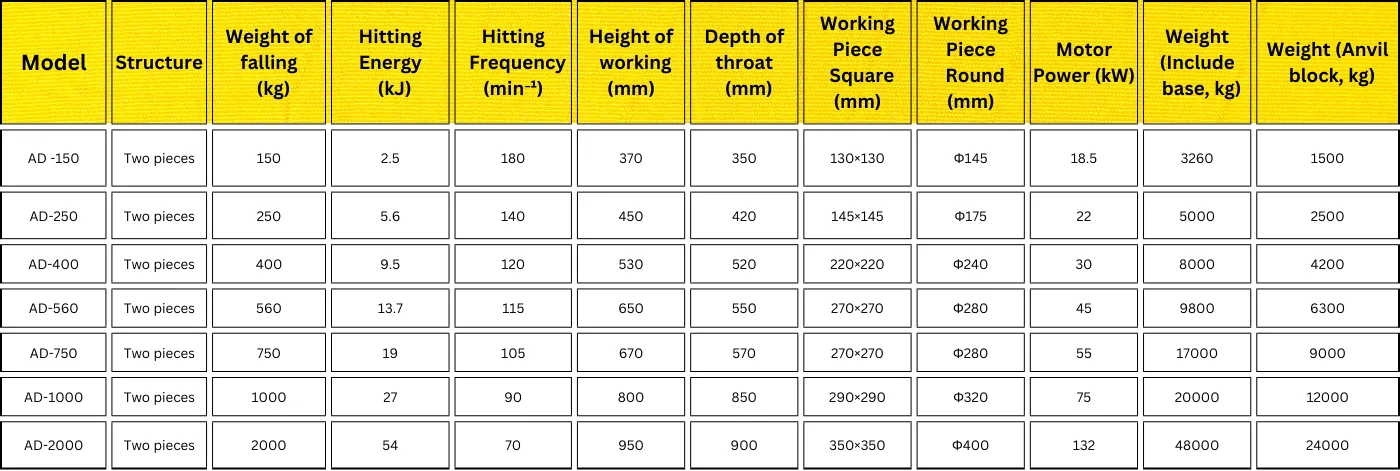

Specifications of Pneumatic Forging Hammer:
Built to Last:
- Durable Frame: Made from heavy-duty cast iron, ensuring long-term stability without flexing—just like old Nazel, Buche, and Massey hammers.
- High-Quality Components: Internal parts are forged steel and precision-machined with no rubber air hoses to deteriorate over time.
- Easy Maintenance: External drive belts for quick adjustments, protected from oil damage.
- Reliable Crankshaft: Fitted with large tapered roller bearings in a grease-filled case for trouble-free operation over decades.
