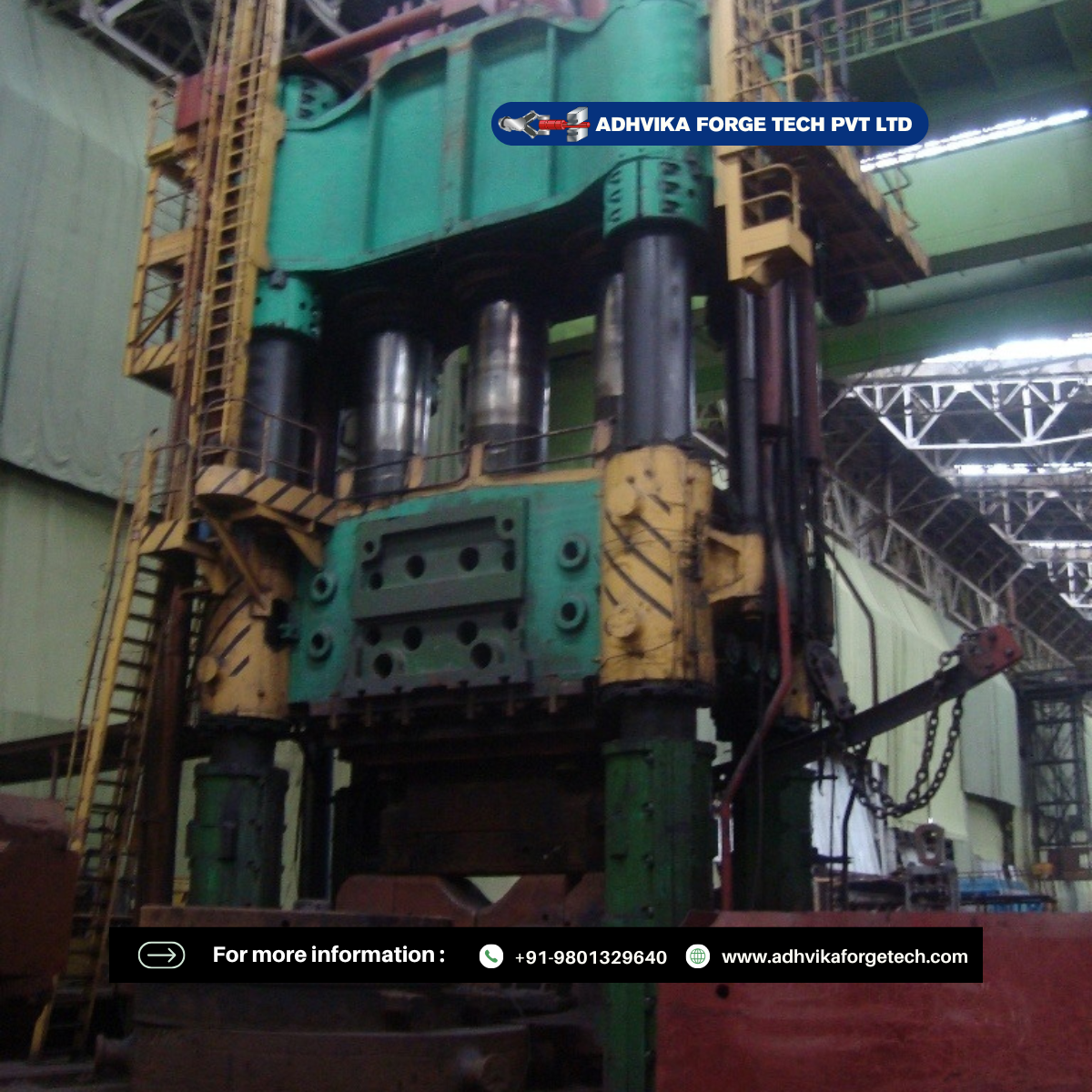

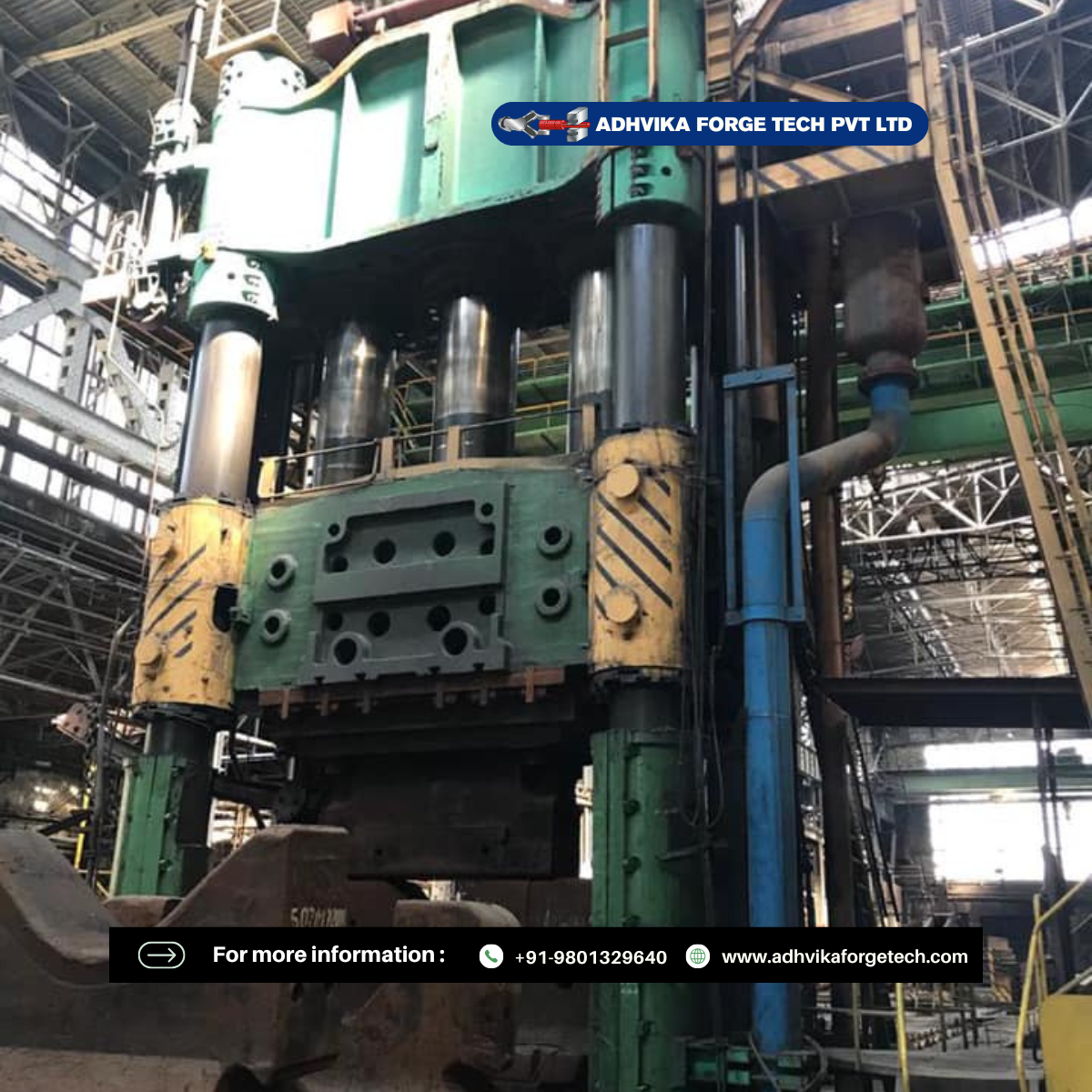

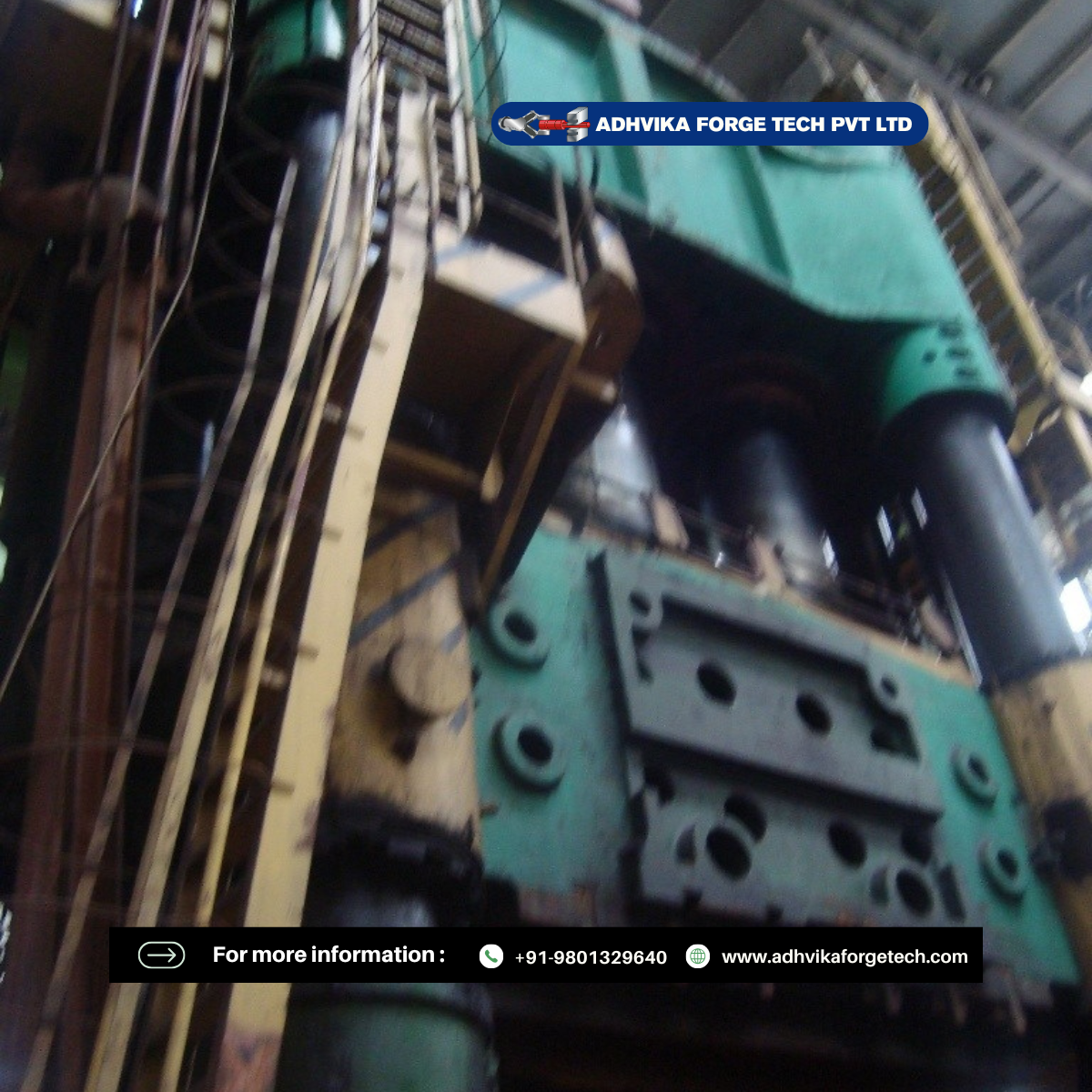

Open Die Hydraulic Forging Press 100MN - 10000 Ton
Specifications
| Type | Hydraulic press |
| Manufacturer | UZTM |
| Model | 100MN |
| Year of manufacture | 1975 |
| Maximal force | 10000 ton |
| First stage force | 4000 ton |
| Second stage force | 6000 ton |
| Third stage force | 10000 ton |
| Working stroke | 2500 mm |
| Free stroke speed | 0,3 m/sec |
| Loaded stroke speed | 0,07 m/sec |
| Table dimensions | 11200 x 4000 x 680 mm |
| Table moving speed | 0,2 m/sec |
| Total weight approx | 2290 ton |
